1SFA896103R7000

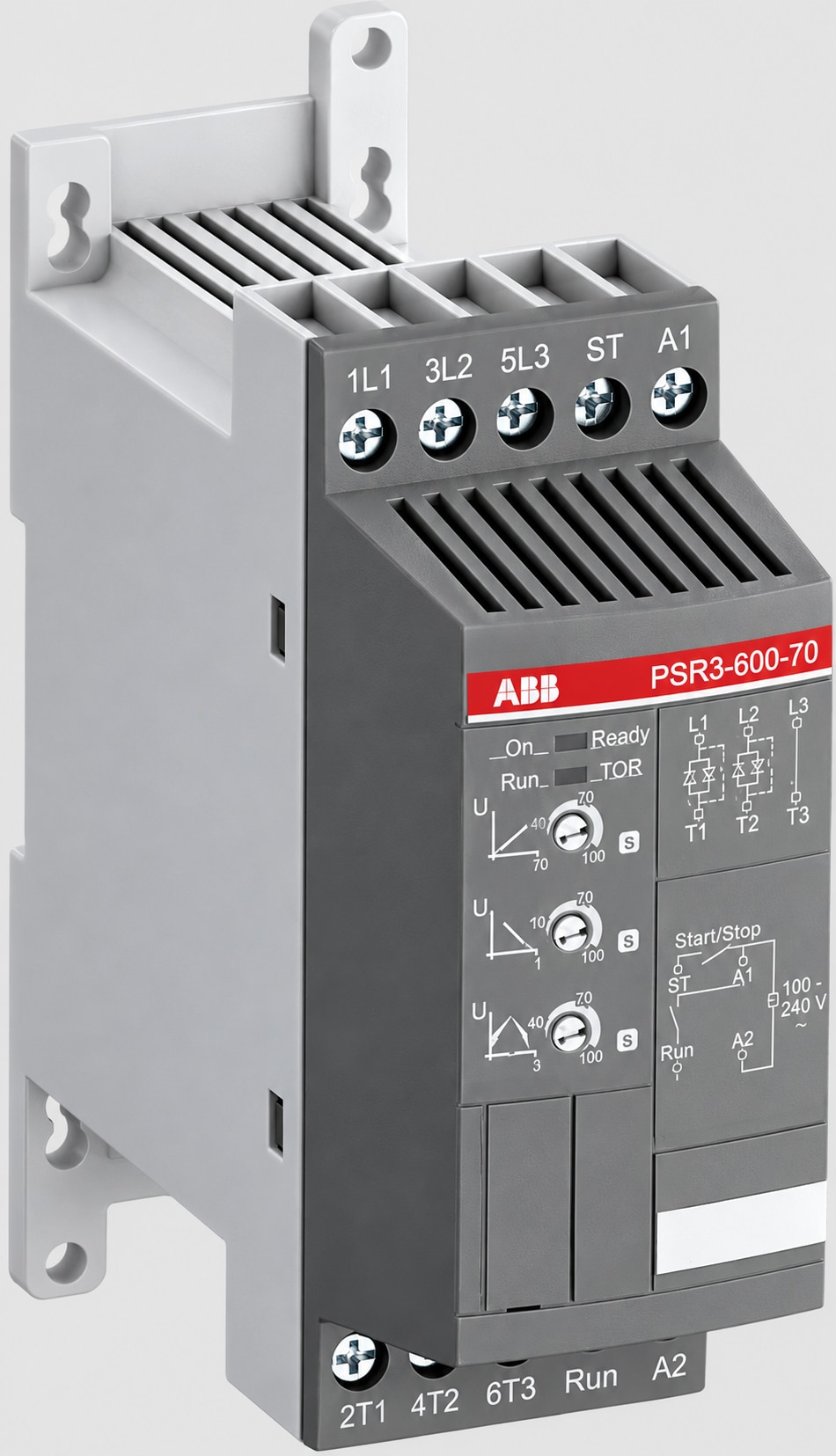

ABB PSR3-600-70 Softstarter, 1.5 kW, 3.9 A

The ABB PSR3-600-70 is a compact softstarter for controlling the start and stop of compatible motors. Its soft-start and soft-stop functions help provide smoother motor operation, while the built-in bypass supports efficient running after start-up. It is rated for 1.5 kW (2 HP) output and 3.9 A, with an operational voltage range of 208–600 V AC.

The control supply is 100–240 V AC at 50/60 Hz. The specified ambient temperature range is −25°C to +60°C. Integrated motor protection is not available, so use suitable external protection; the listing recommends an MS116 in the 0.63–4.00 A range. Optional FieldBusPlug communication is also listed.

Ahmedabad Electric Corporation can help you check availability and confirm whether the ABB PSR3-600-70 is suitable for your motor and control-panel requirements.

Key specifications: ABB | PSR3-600-70 | 1.5 kW / 2 HP | 3.9 A | 208–600 V AC operational voltage | 100–240 V AC control supply | Soft start and soft stop | Built-in bypass
