1SFA896109R7000
Description

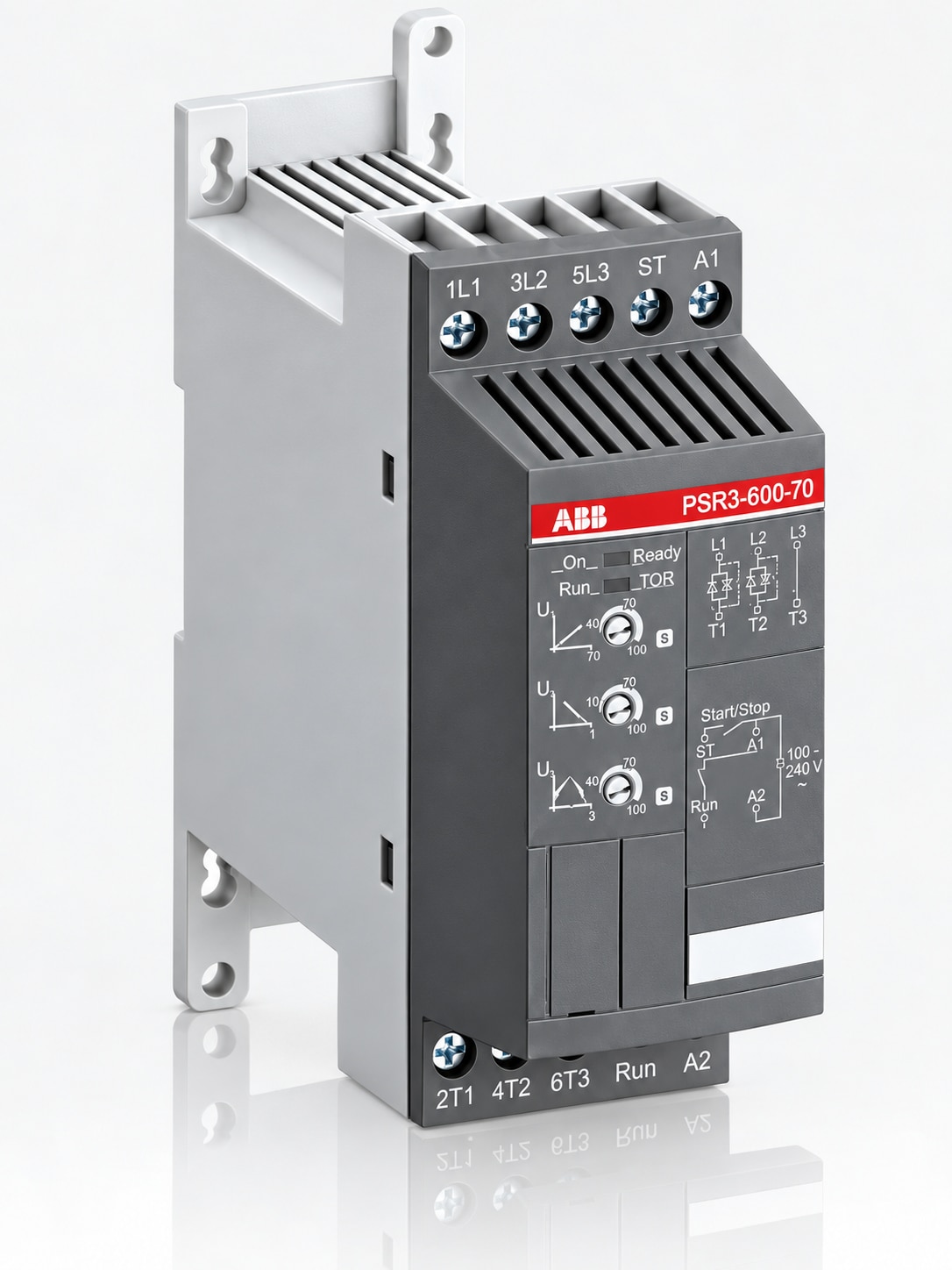

ABB PSR30-600-70 Softstarter, 15 kW, 30 A
The ABB PSR30-600-70 softstarter provides controlled starting and stopping for compatible motors. Its soft-start and soft-stop functions support smoother motor operation, while the built-in bypass helps improve efficiency after start-up. It is rated for 15 kW (20 HP) output and 30 A, with an operational voltage range of 208–600 V AC.
The control supply is 100–240 V AC at 50/60 Hz, and the specified ambient temperature range is −25°C to +60°C. Integrated motor protection is not available, so suitable external protection is required; the listing recommends an MS132 in the 25–32 A range. Optional FieldBusPlug communication is also listed.
Ahmedabad Electric Corporation can help you check availability and confirm whether the ABB PSR30-600-70 is suitable for your motor and control-panel requirements.
Key specifications: ABB | PSR30-600-70 | 15 kW / 20 HP | 30 A | 208–600 V AC operational voltage | 100–240 V AC control supply | Soft start and soft stop | Built-in bypass
Specifications
| Rated soft starter current at Pe: Ie(A) | 30 ampere |
|---|---|
| Rated control supply voltage (Us) | 100 ... 240 volt AC |
