1SFL427001R1211

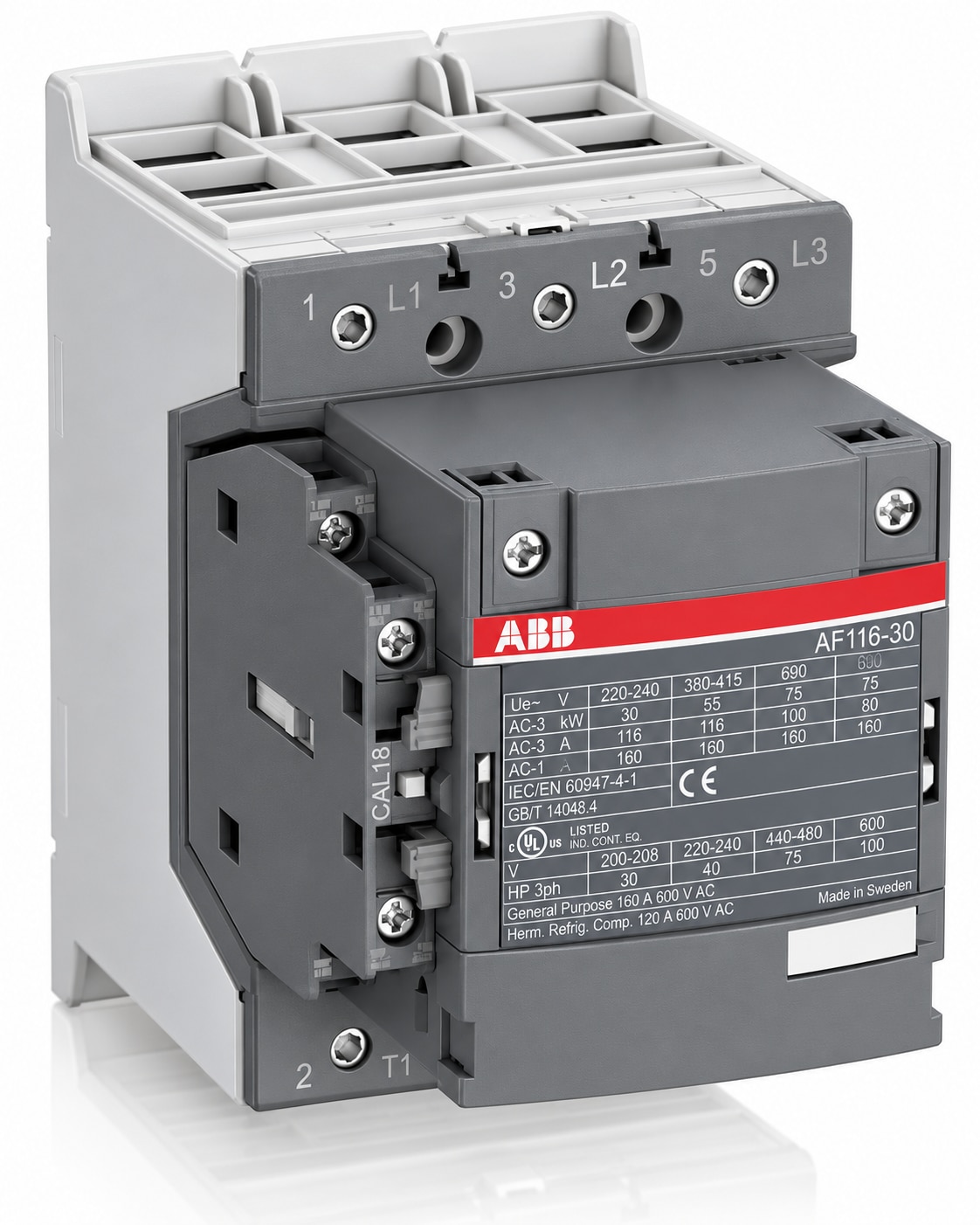

Ahmedabad Electric Corporation offers the ABB AF116-30-11-12 contactor for three-phase motor control and industrial switching applications. Part of ABB’s AF contactor range, this 3-pole block contactor is suitable for motor starting, isolation, bypass and power distribution applications.

The contactor has three main normally open poles and 1 NO + 1 NC auxiliary contact for control and signalling circuits. Its coil operates on 48–130 V AC at 50/60 Hz or 48–130 V DC. The main circuit is rated for operation up to 690 V.

For AC-3 duty, its rated operational current is 116 A at 220–440 V, 110 A at 500 V, and 65 A at 690 V. Its rated AC-3 motor power includes 55 kW at 380/400/415 V. Ratings depend on the operating voltage and conditions, so confirm the contactor selection against the motor and application requirements.

Contact Ahmedabad Electric Corporation for a quotation, availability and help matching the product to your control panel or motor application. Use suitable overload and short-circuit protection in the circuit as required. ABB eMart
