1SFL427001R1311

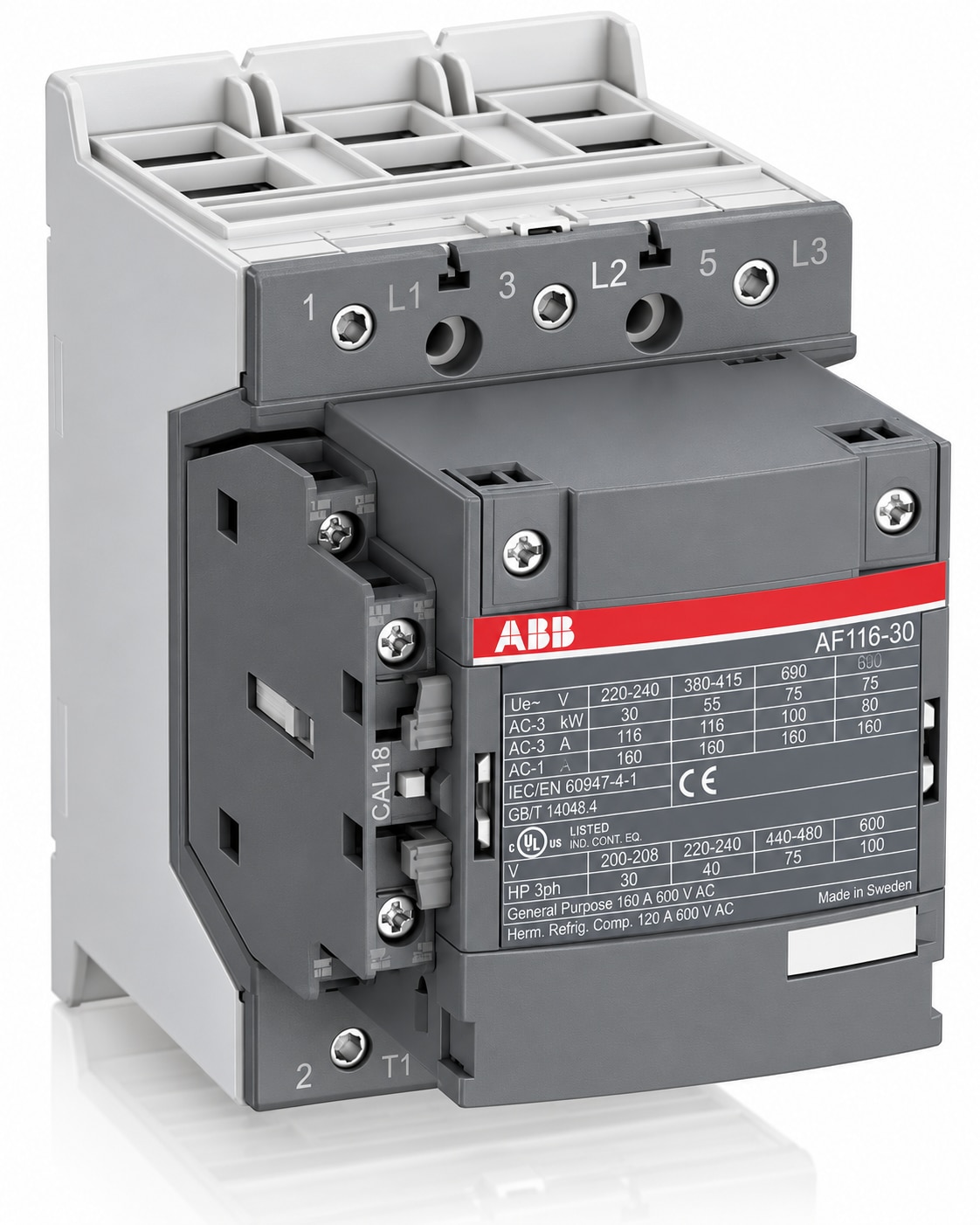

Ahmedabad Electric Corporation offers the ABB AF116-30-11-13 contactor for three-phase motor control and industrial switching applications. This ABB AF-series contactor is suitable for motor starting, electrical isolation, bypass and power distribution.

It has three main normally open poles and 1 NO + 1 NC auxiliary contact for control and signalling circuits. The coil operates on 100–250 V AC at 50/60 Hz or 100–250 V DC. The main circuit is rated up to 690 V.

For AC-3 duty, its rated operational current is 116 A at 220–440 V, 110 A at 500 V, and 65 A at 690 V. Its rated motor power includes 55 kW at 380/400/415 V. Confirm the contactor’s suitability against the motor’s voltage, current and operating conditions, and use appropriate overload and short-circuit protection as required.

Contact Ahmedabad Electric Corporation for a quotation and assistance selecting this contactor for your motor control panel or industrial application.
