1SFL471001R8011

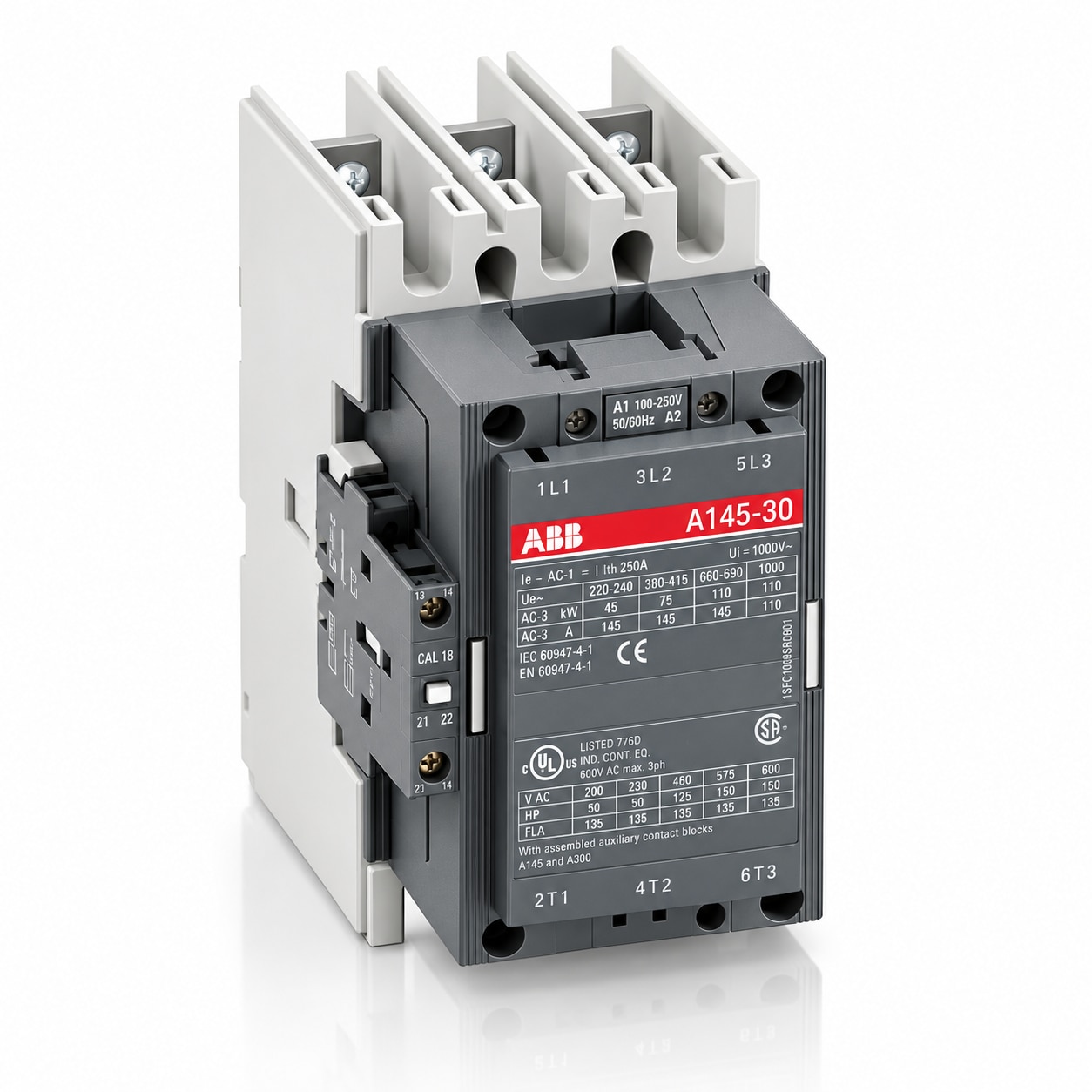

ABB A145-30-11 Contactor — 220–230 V AC Coil

The ABB A145-30-11 is a three-pole block contactor designed for switching and controlling three-phase motors and other industrial electrical loads. Its coil operates at 220–230 V AC, 50 Hz, or 230–240 V AC, 60 Hz. It features three main normally open contacts and one normally open plus one normally closed auxiliary contact for control and signalling circuits.

At 55°C, it has an AC-3 operational current rating of 145 A at 220–500 V and 120 A at 690 V. Its AC-3 motor power ratings include 45 kW at 220–240 V, 75 kW at 380–415 V, and 110 kW at 690 V. With a rated insulation voltage of 1,000 V, it is suitable for motor starting, isolation, bypass and distribution applications when selected for the system requirements.

Product code: 1SFL471001R8011

Extended type: A145-30-11-80
