7T5102304360

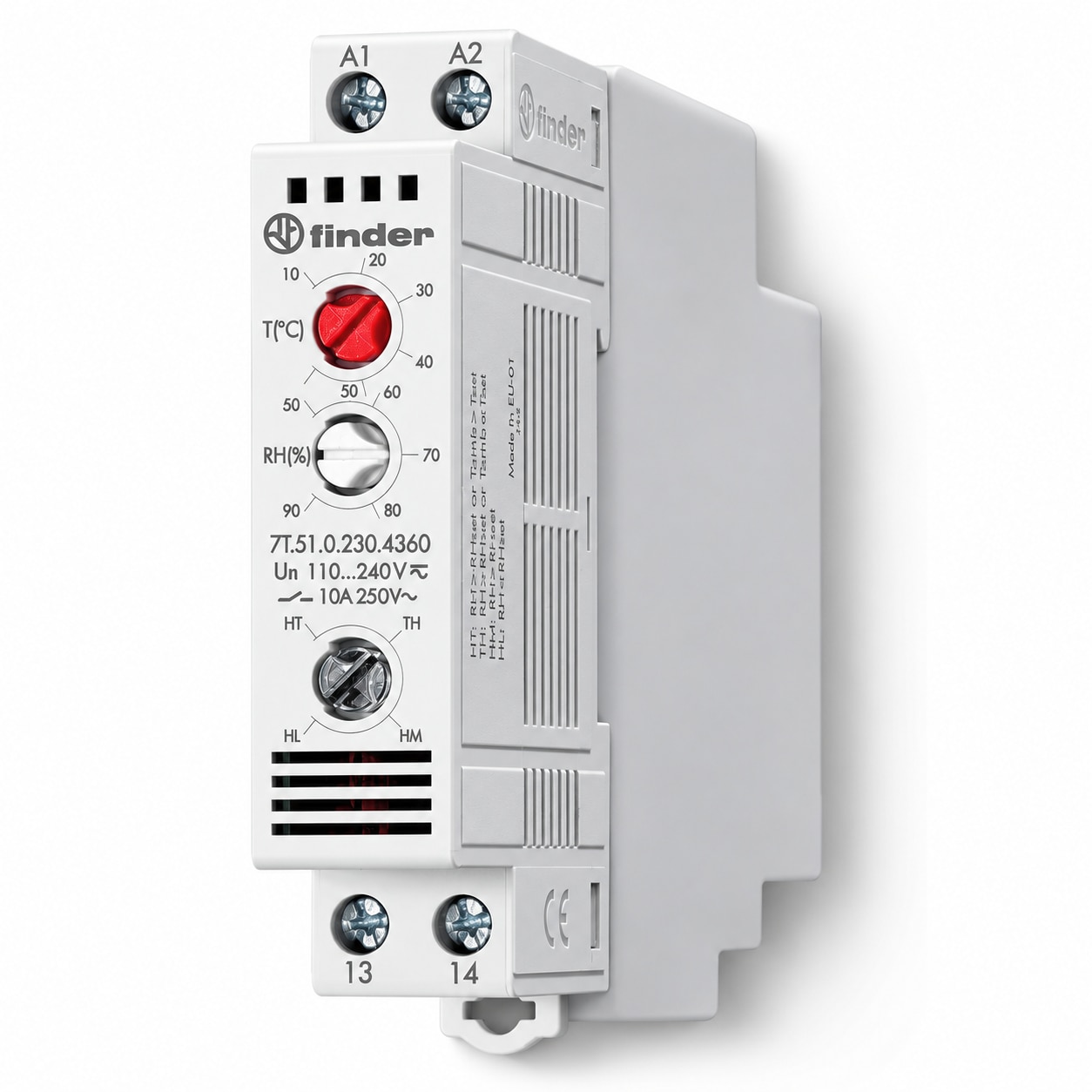

The Finder 7T.51.0.230.4360 Panel Thermo-Hygrostat is designed for temperature and humidity monitoring in electrical panels and enclosures. It helps panel designers manage internal environmental conditions by switching compatible external equipment—such as heating or ventilation devices—according to the selected control settings.

The unit works with a 110–240 V AC/DC supply. Its temperature range is adjustable from +10°C to +60°C, while the humidity range can be set from 50% to 90% RH. Four operating modes—HT, TH, HM and HL—provide options for combined temperature and humidity control or humidity-based operation. A front LED indicates when the output contact is closed.

With a compact 17.5 mm width, screw terminals and 35 mm EN 60715 DIN-rail mounting, the thermo-hygrostat can be integrated into suitable control-panel layouts. It has one normally open output contact rated at 10 A, 250 V AC. Check the connected load and installation requirements before use. Ahmedabad Electric Corporation can assist with product selection and enquiries.
