SK829002-D

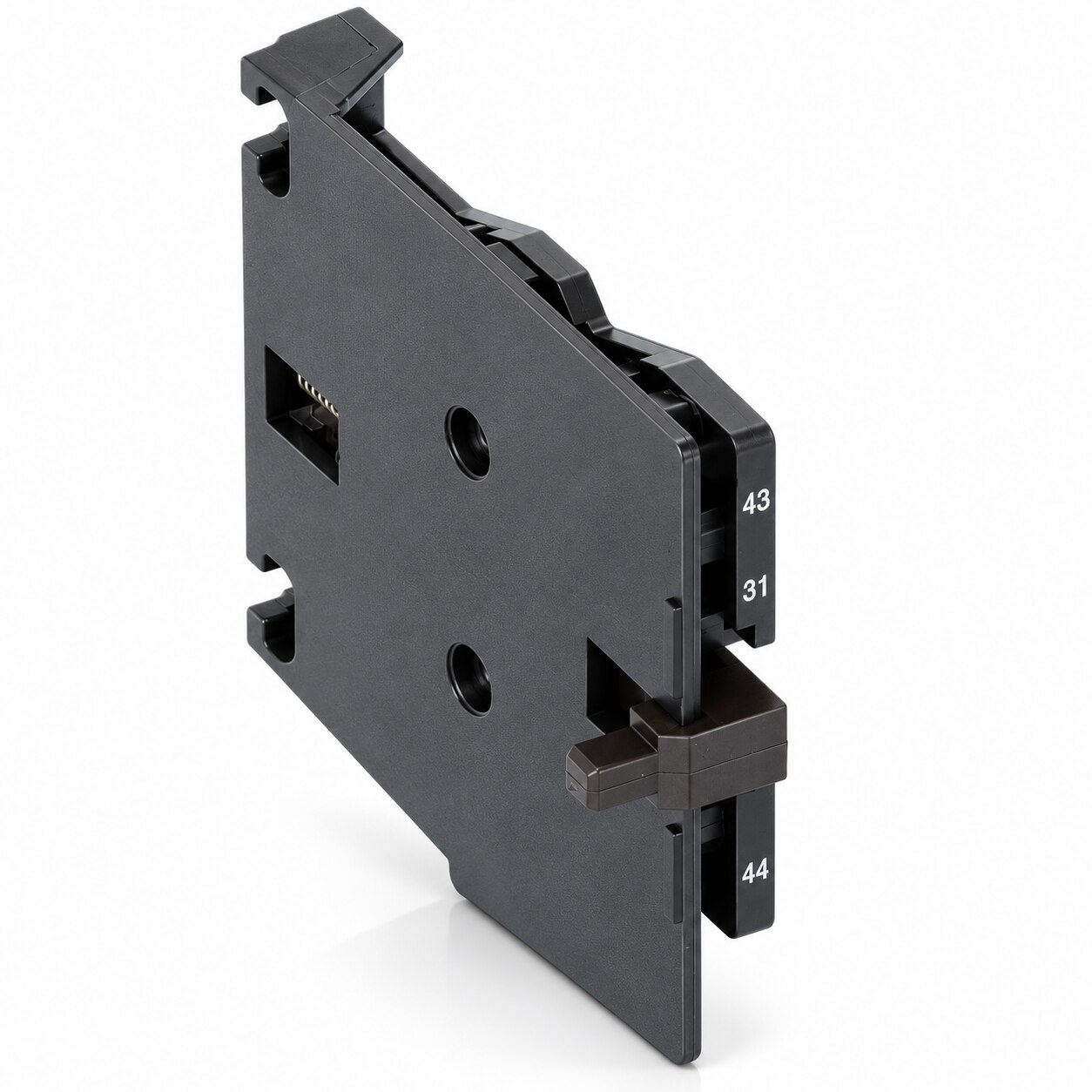

ABB CAL16-11D Auxiliary Contact Block – 1NO + 1NC, Part Number SK829002-D

The ABB CAL16-11D is a two-pole auxiliary contact block designed for compatible ABB EK contactors. It fits in the specified right outer-side mounting position and provides one normally open (1NO) and one normally closed (1NC) instantaneous contact. These contacts can support auxiliary control, signalling, status indication and interlocking functions in industrial control panels.

The block uses screw-type connecting terminals for control-circuit wiring. Its conventional free-air thermal current (Ith) is 16 A at 40°C, and its rated insulation voltage (Ui) is 690 V. For AC-15 use, the listed operational current is 6 A at 220/240 V, 4 A at 380/440 V, and 1 A at 500/690 V. DC-13 ratings vary by voltage; select the block according to the control-circuit load and ABB’s technical specifications.

Before ordering, verify the contactor model and required mounting position. For ABB CAL16-11D availability and compatibility assistance, contact Ahmedabad Electrical Corporation.
