1SFL981074R8611

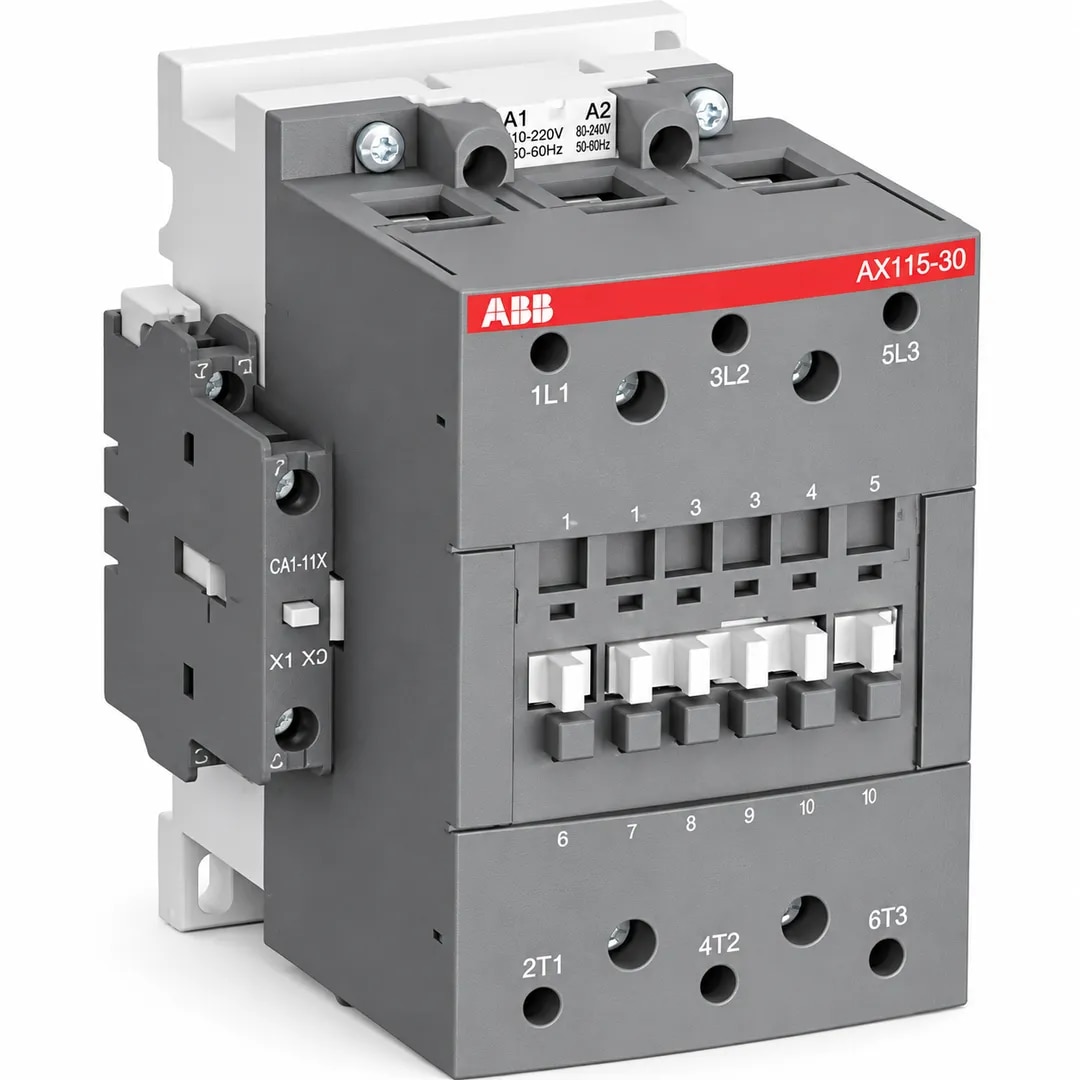

The ABB AX115-30-11-86 is an AC-operated three-pole contactor designed for switching three-phase motors and power circuits. It has three normally open main contacts and built-in 1NO + 1NC auxiliary contacts for control, status signalling and interlocking in electrical panels.

Its control coil is rated 400–415 V AC at 50 Hz or 415–440 V AC at 60 Hz. ABB’s catalog lists an AC-1 rating of 160 A at 40°C and an AC-3 rating of 115 A at 415 V. The rated motor power is 55 kW at 400 V and 59 kW at 415 V. The AX95–AX150 range is intended for three-phase motor and power-circuit control up to 690 V AC. Confirm the coil voltage, motor load, utilization category and protection coordination before ordering. library.e.abb.com

This ABB AX-series block contactor is suitable for industrial control panels, motor starters and machinery applications, including pumps, compressors and conveyors. Pair it with appropriately selected overload and short-circuit protection for the installation.

Ahmedabad Electrical Corporation can assist with product identification, quotation and supply enquiries for the ABB AX115-30-11-86 contactor. Share the complete model or order code 1SFL981074R8611 when requesting a quote.
