1SBL901074R8610

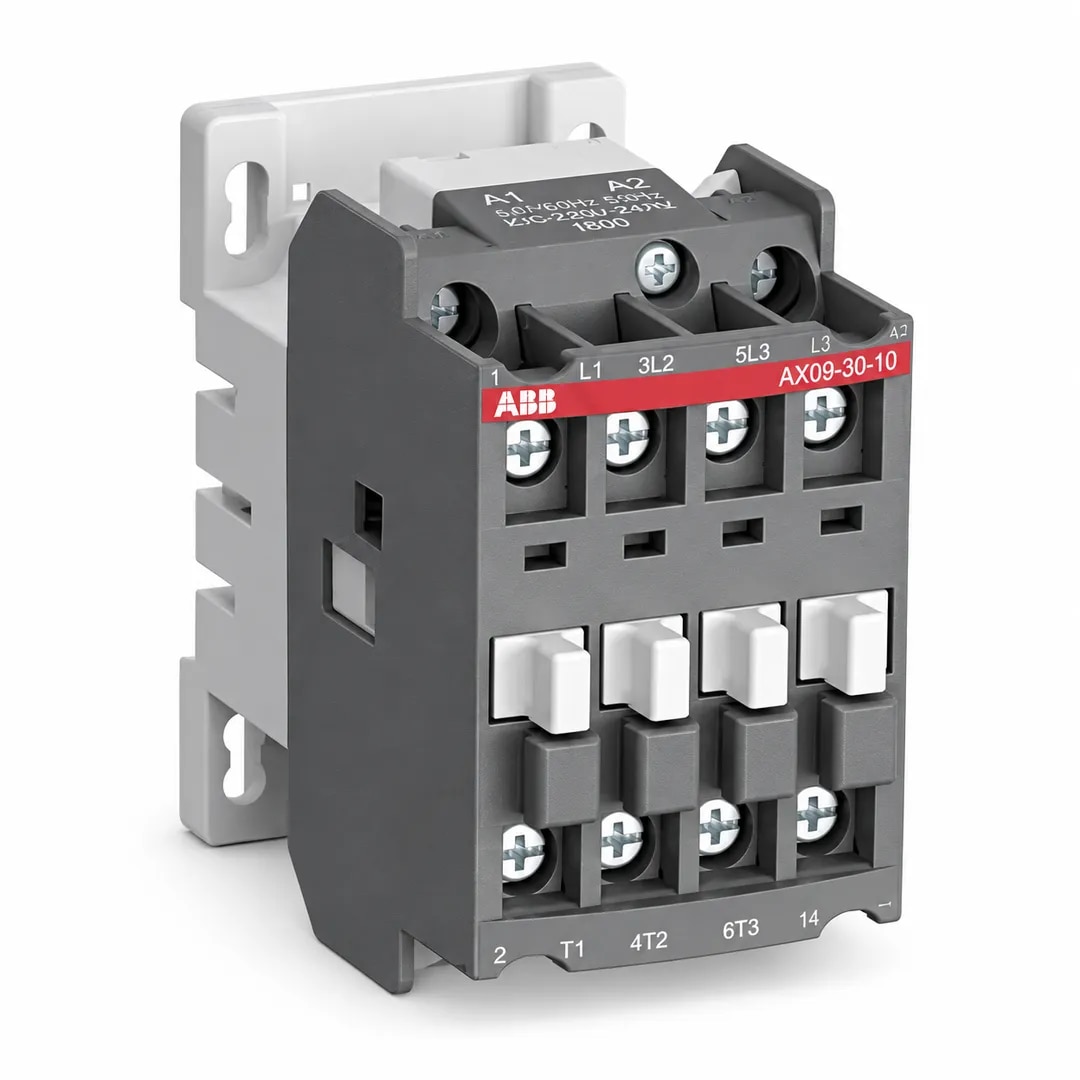

ABB AX09-30-10-86 is a compact 3-pole AC contactor designed for reliable control of three-phase motors and power circuits up to 690V AC. It is suitable for use in industrial control panels, motor starters, pumps, compressors, HVAC equipment, machinery, and automation systems.

This contactor has 3 normally open main contacts and 1 built-in normally open auxiliary contact, with no normally closed contacts. It operates with an AC control coil rated at 400–415V AC, 50Hz and 415–440V AC, 60Hz. The block-type design allows easy installation and supports compatible front- or side-mounted auxiliary contact blocks and accessories.

The ABB AX09-30-10-86 offers AC-3 motor switching performance of up to 9A across common operating voltages and 7A at 690V, making it suitable for standard motor-control applications. Both the main and auxiliary circuits are rated for operation up to 690V AC at 50/60Hz.
